Do you have a Simplicity Legacy XL with the Front End Loader (FEL) attachment and would like some forks to use with it?
Most industrial forks are so heavy they take up a huge portion of your lift capacity with these small tractors.
Our tractors are only rated to 500 lb lift capacity, we don’t need solid forks rated for thousands of pounds.
You could use bucket mounted clamp on forks, but those extend so far out and add significantly more weight to the bucket, so you lose capacity both from weight and distance from the tractor (leverage). You also lose visibility because you can’t see the forks in front of the bucket. They could also bend your bucket.
Our fork attachments are engineered and hand fabricated here in WI using US sourced steel for high quality weldments.
Features Include:

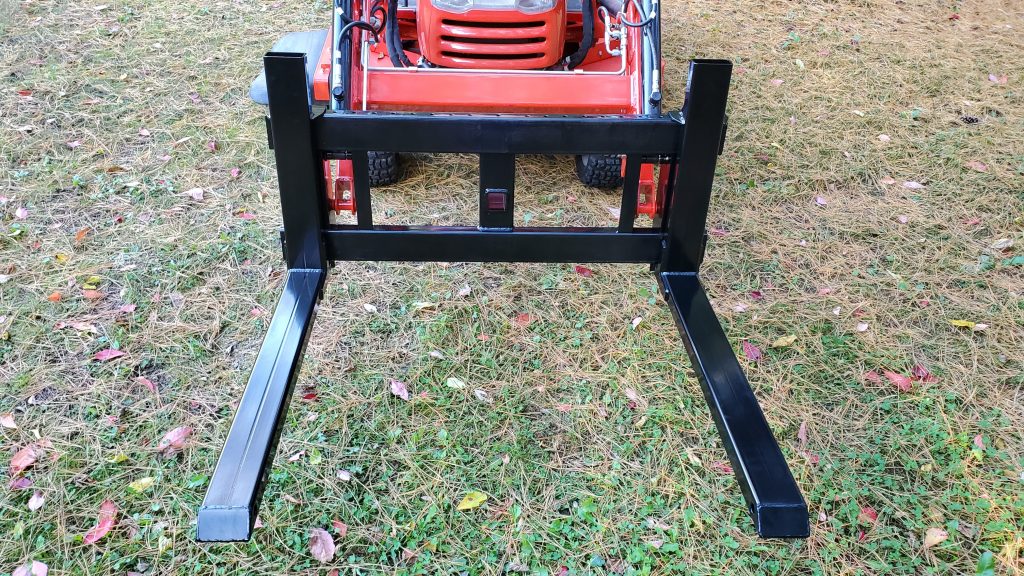

- Low weight with hollow steel rectangular tubing. The entire fork assembly weighs only ~20 lbs more than the bucket.
- Compact Design keeps the load close to the loader frame for more stability.
- Maintains load capacity of the tractor.
- Open frame design allows you to see the forks easier.

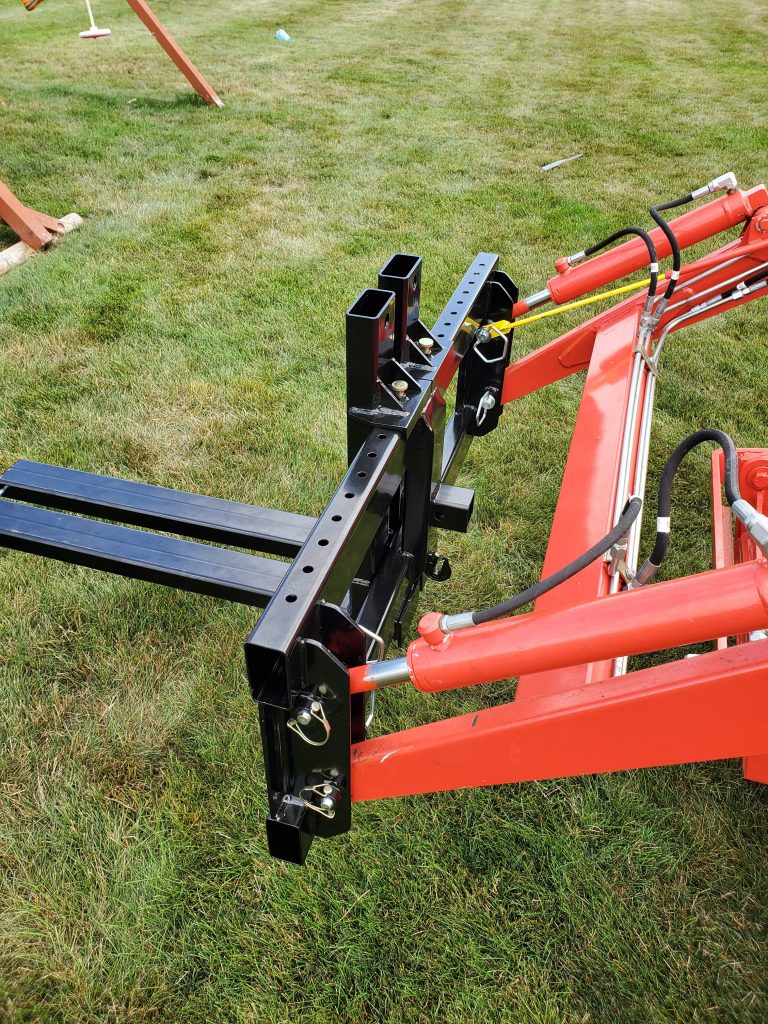

- Spring Plungers can be pulled up to release the forks and slide them to different widths depending on what you are lifting.
Tool-less Changeover

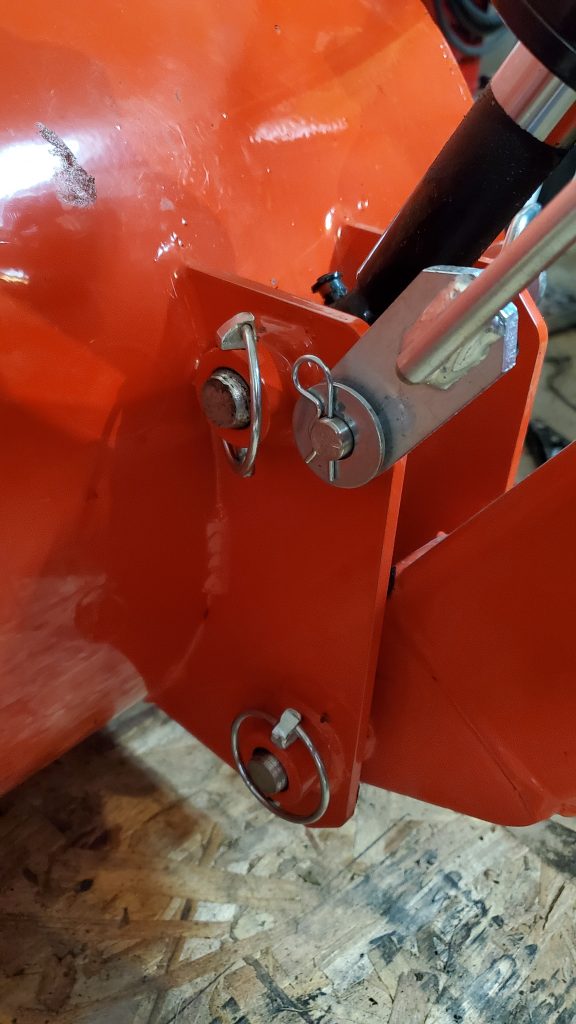

- Forks attach using 3/4″ hitch pins(included) in place of the bolted in pins on the bucket.
- When it is time to put the bucket back on, just use the same included 3/4″ pins and 1/4″ spring clips to hold the bucket on that came with the loader.

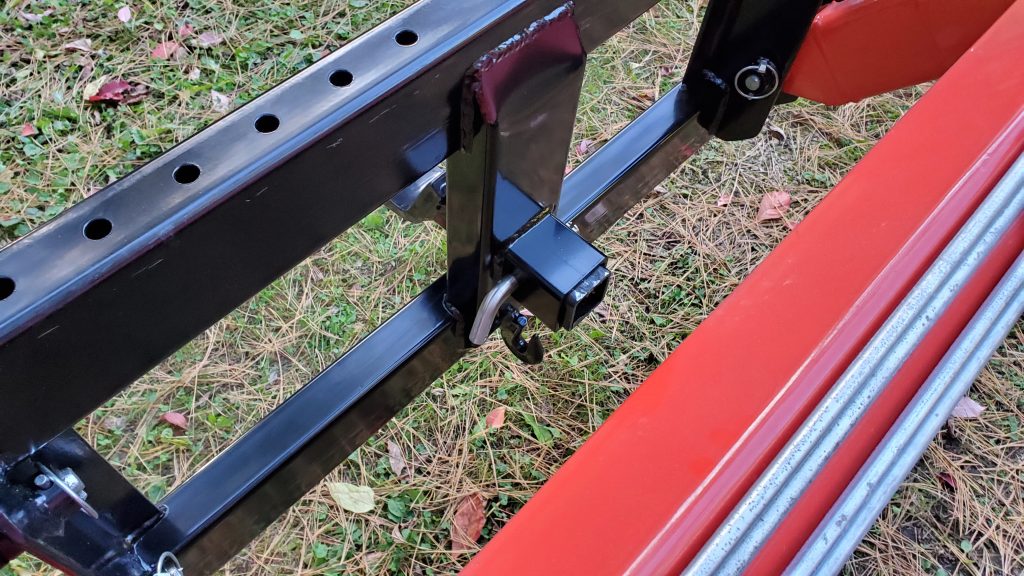

- 2″ Receiver built into the base allows you to slide any standard 2″ hitch ball mount into the base for moving small trailers and such with easier visibility.
- 5/16″ log chain hook in back center for pulling or lifting at the base (always stay within tractor capacity limits)

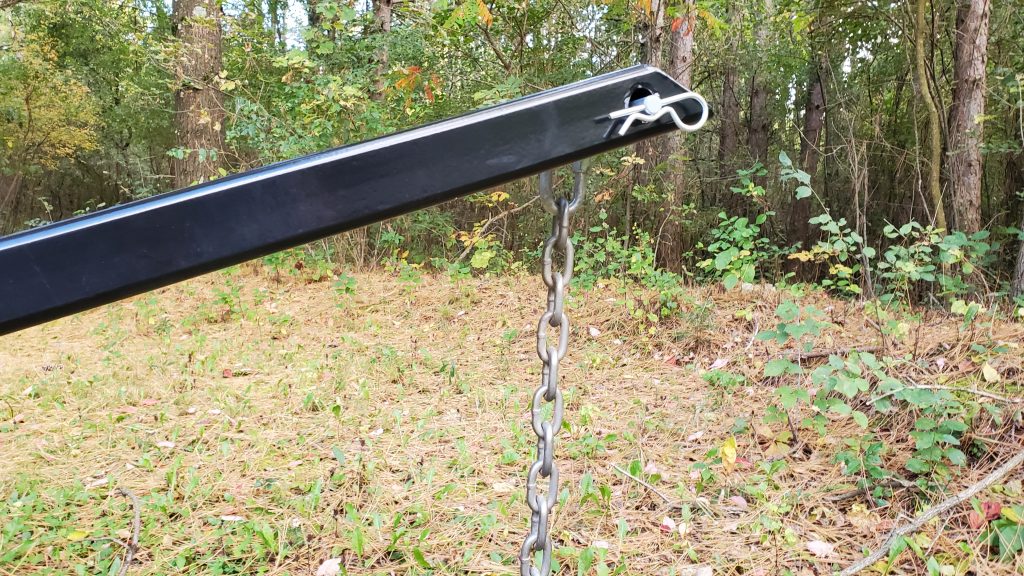

- Tubes at end of forks allow a 1/2″ pin(included) for lifting small loads at the end of the forks (always stay within tractor capacity limits)
- Hollow base allows you to slide full length 2x4s into it to create a temporary gate or fence during farm repairs.
- Durable Satin black powder coat finish
Storage is easy
- since the forks slide off and the base unpins you can hang the whole setup on the wall to save space.
Available for both new and original style loader designs
Newer curved boom with narrower loader frame:
- Longer pins installed from outside the frame with separate indicator rod mount
Original angled boom with wider loader frame:
- Shorter pins installed from inside the frame with integral indicator rod mount
Testimonials:
Mark from MI:
“Just wanted to let you know that the forks that you built are fantastic! They have saved us a lot of back breaking work.”
Jeff from IL:
“These are everything I could want in a set of forks with all the features you included, and they are easy to put on and work great.”
Specifications:
- Base Frame: 48″ Width x 17.5″ height
- Fork Tongs: 42″ length x 24″ total height
Cost: ~$TBD (cash price, +1% for ACH, +3% for credit card)
Update Oct 2nd, 2023:
Current batch of forks are through fabrication and in powder coat.
Thank You Very Much.
The cost does not include freight. Local Pickup can be arranged for free.
If you need freight the costs are:
$50 to mount the forks to a pallet so they can ship safely.
Freight cost is also around $200 – $450 for normal US mainland freight, this will vary depending on location, and whether you get local delivery and lift gate or you pick it up from the terminal.
Contact me for more details or questions. Thank you.
Please note, I always respond to my messages so if you don’t receive the response within 48 hours or less please check your spam or give me a call as there must be an e-mail issue.
